Reef Octopus Regal 150 Internal Protein Skimmer Review

View On Amazon

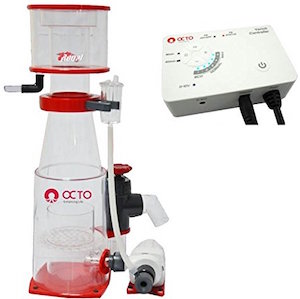

Reef Octopus Regal 150 Internal Protein Skimmer Overview

The Reef Octopus Regal 150 Internal protein skimmer is for in-sump use. The protein skimmer is made from solid cast acrylic which is very sturdy and will allow the protein skimmer a product lifespan of over one decade. The cast acrylic body is formed into an hybrid conical shape that naturally stabilizes your micro-bubble foam as it rises.

The The Reef Octopus Regal 150 Internal protein skimmer is barely audible from 3 feet away. It is super quiet because of its internal silencer.

The Reef Octopus Regal 150 Internal protein skimmer can be completely disassembled for cleaning. The collection cup simply twists and lifts off for quick and easy daily emptying.

The Reef Octopus Regal 150 Internal protein skimmer is equipped with the new generation of Reef Octopus's controllable Direct Current VarioS-2S pinwheel water pump. This water pump comes with a controller that allows the user to adjust the speed of the water pump, and therefore control the height of the protein skimmer micro-bubble foam. The user of the Reef Octopus Regal 150 Internal protein skimmer can ensure their protein skimmer is working perfectly and operating at the correct water level without the hassle of sticking their hands in the water

Ultimately, the Reef Octopus Regal 150 Internal protein skimmer is one of the best protein skimmers on the market, and will skim your aquarium to perfection. The only downside is that this protein skimmer has a high price tag, so it may be too costly for a budget.

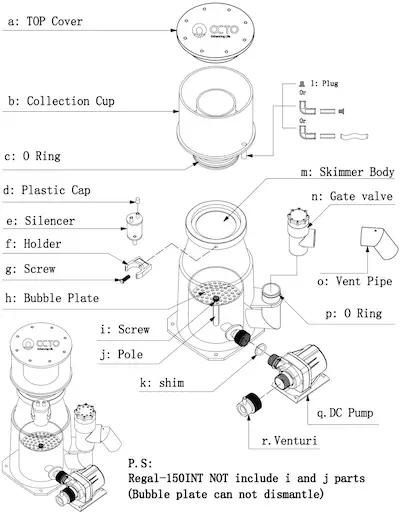

Setting Up Your Reef Octopus Regal 150 Internal Protein Skimmer

To set up the Reef Octopus Regal 150 Internal protein skimmer you will need to:

A. Place the protein skimmer body on a flat surface. Insert the pole into the center hole followed by the bubble plate, and screw them in place.

B. Insert the holder on top of the skimmer body, and screw it in place.

C. Place the silencer and plastic cap on top of the holder.

D. Attach the O ring to the bottom of the collection cup, and add this unit on top of the silencer. Attach the drain plug or tubing to the collection cup.

E. Put the top cover onto the collection cup.

F. Attach the vent pipe to the side hole of the protein skimmer body, and attach the O ring onto it followed by the gate valve facing upwards.

G. Attach the shim to the hole on the front of the protein skimmer body, followed by the water pump. Attach the venturi valve onto the water pump.

Now that the Reef Octopus Regal 150 Internal protein skimmer is assembled, it is time to place it in your sump. Position it in your sump along with the water pump and keep in mind that it should have a water level depth of 6 to 8 inches for maximum performance.

How To Operate Your Reef Octopus Regal 150 Internal Protein Skimmer

A. Plug the water pump into your power source.

B. Press the power button on.

Leave the water pump on maximum speed for about a week to break the protein skimmer in.
Note: you may take the collection cup off during this time period and allow the water to just go back into the tank since the protein skimmer will not be at peak performance yet.

C. Adjust the speed of the water pump until your micro-bubble foam is popping just into the collection cup.

Using Your Reef Octopus Regal 150 Internal Protein Skimmer Water Pump Controller

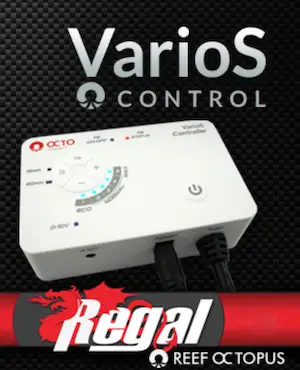

The water pump that comes with the Reef Octopus Regal 150 Internal protein skimmer is the VarioS-2S. This water pump has a detachable controller allows the user to attach float switches, pause the water pump, adjust the speed of the water pump, and attach the controller to a third party controller.

When the controller is detached, the user may rotate his water pump outlet in 90 degree intervals to face upwards, downwards, or horizontally.

Using Speed Control:
Your VarioS-2S water pump controller has 5 speed settings ranging from low to maximum speed. By pressing each button you can adjust your water pump's GPH speed to adjust your micro-bubble foam to be at the correct level just below the collection cup. This is very easy and mess-free adjustment.

Using Pause Control:There are two options on the water pump controller to pause your water pump. You can press "pause" once to pause the water pump for 15 minutes or press "pause" twice to pause the water pump for 60 minutes. During the pause duration of time, if you wish to unpause the water pump simply press the "power on" button once. The pause option is great to do water changes or tank maintinence, or feed your fish.

Using Float Switches: You can attach a float switch to the controller to float in the water. You can set the float switch to stop the water pump if the collection cup gets full, or if the water level of your sump gets too high. The button controlling the float switch is the button on top of the button circle, labeled "FS". There are 2 lights located on top of the controller labeled "FS ON/OFF" and "FS STATUS" that show the status of the float switch. If the "FS ON/OFF" is lit up, the float switch is on and operational, and vice versa. If the "FS STATUS" light is on, the water pump is not working and is paused because of your float switch. This means you should check your float switch and see what water level is too high.

Using Third Party Controllers: The VarioS-2S controller allows you to connect your water pump controller to another third party controller for controlling your aquarium you may have, such as the Neptune APEX or Reef Angel. The VarioS-2S controller connects to another controller wih its 0-10V input(3.5 mm audio port). After connecting this water pump controller to a third party device, you can tell its connected when the "0-10V" button is lit up.

See the below video if you wish to see the water pump controller in action.

Maintenance

To keep your Reef Octopus Regal 150 Internal protein skimmer working good, you should disassemble and clean the protein skimmer once per month.

Daily you should check that the collection cup is not full so that your protein skimmer can keep on collecting.

Every week, check that the tubing and valves are not clogged with debris or salt so that water is effectively flowing through the protein skimmer.

Warranty

The Reef Octopus Regal 150 Internal protein skimmer has a 2 year warranty on the pump body, a 1 year warranty on the pump rotor, and a 1 year warranty on the protein skimmer body by Coral Vue Reef Octopus.

Reef Octopus is not held responsible for damage arising from use of or installation of this protein skimmer.

Reef Octopus warrants the pump to be free from defects and workmanship under normal use and conditions for the warranted period of time. The warranty is limited to repair or replacement of broken parts that are broken due to workmanship.

Coral Vue will not be liable for the cost of removal, installation, transportation, or any other charges that may arise in a warranty claim.
